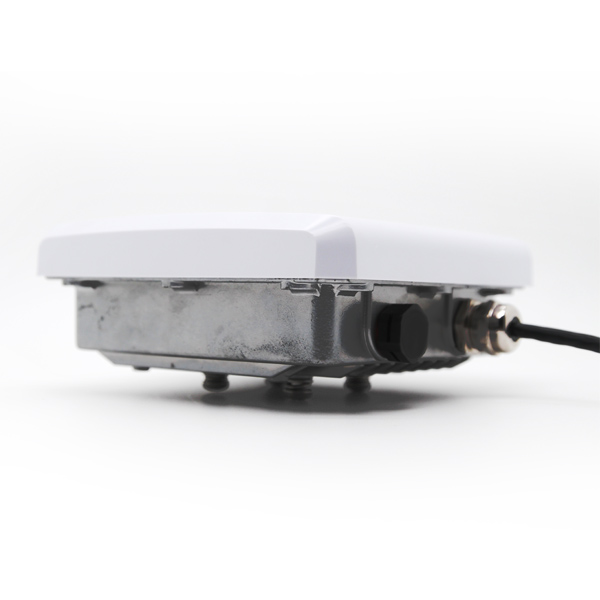

The U6-IE-02 UHF RFID reader module is an integrated UHF reader/writer with 8db internal antenna and optional SMA port for an external antenna. The UHF reader writer supports main protocols including EPC global C1 Gen2, ISO18000 6c and GB/T 29768-2013.
The Module has USB serial port and configurable to optional RS232, HID, TCP/IP interfaces with max baud rate of 115200bps. Working at FCC 902~928MHz/GB 920~925MHz, the UHF reader have an internal 8db antenna have a maximum 4m reading distance and an SMA port to install external anntenna.

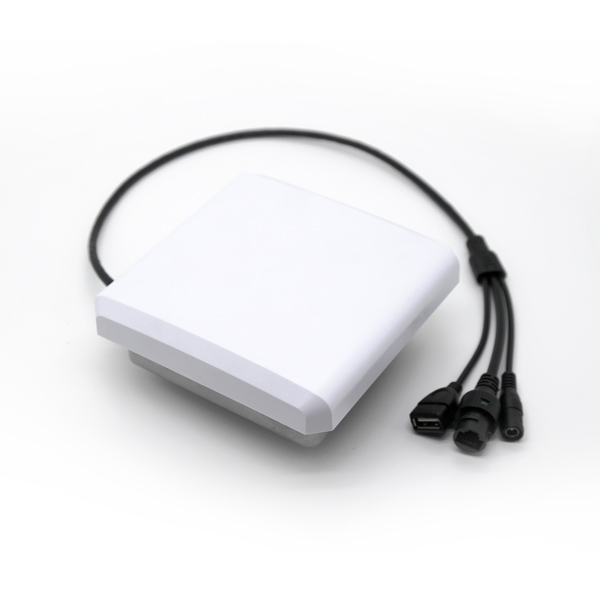

U6 UHF Reader with Antenna
For this U6 integrated UHF reader, open SDK are provided for supporting any software development. The module is applied for situations where group uhf tags and long distance reading, data transmission and high security are required. Moreover, it supports to read and write our proprietary temperature sensing tags. This UHF module are applied in various industries including asset management, aviation, logistics, retail, identification and etc.
